ROV of the professional line of ROVs GNOM family.

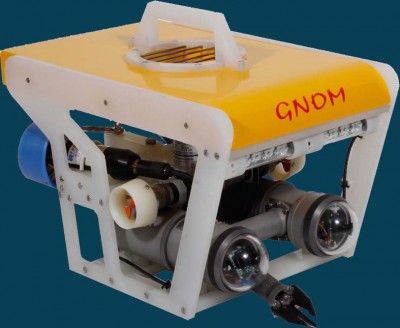

ROV GNOM PRO





Technical specifications

UNDERWATER PART

Maximum Operating depth 150 m (optionally up to 300 m)
Dimensions (LxWxH) 520 mm x 440 mm x 347 mm
Weight in air / total system weight 25 kg / 100 kg
Thrusters 4 magnetically coupled brushless DC motors
Horizontal: 2x thrusters, 48 VDC 200W
Vertical: 2x thruster, 48 VDC 200W
Cruising speed (forward) up to 4 knots
Lateral speed (optional) up to 0.5 knots
Thrust Forward 12 kgf
Thrust Vertical 10 kgf
Payload 5 kg
Vehicle Protection Polypropylene frame



TETHER

Max. tether length 400 m
Cable diameter 10 mm
Breaking Strength 200 kg
Weight in Air 7 kg/100 m
Weight in Fresh Water Neutrally Buoyant
Type Multicore tether with kevlar wires
Max. Working Load 60 kg



CAMERA SYSTEM

Camera Model Sony Super HAD 2 CCD
Camera resolution 700 TV Lines
Image Sensor 1/3" Interline Transfer CCD
Mini Illumination 0.1 lux (0.01 - b/w camera)
Lens 3.6 mm/F2.0
Iris Control Auto
Focus Auto
Field of View (FOV) 66º
Camera Tilt +/- 50º



LIGHTING SYSTEM

Light Source White ultra-bright LEDs
Number of LEDs 10x
Power 4x8 watts, 6x1 watts
Luminous Flux 6000 lumen
Beam Angle 105º each
Colour Temperature 5600-6000º Kelvin
Control Variable intensity



TELEMETRY SYSTEM

Sensors Compass and Depth sensors
Teletext Yes
Auto-guide mode Yes
Auto-depth mode Yes

SURFACE CONTROL UNIT

Power supply 100-240 VAC @ 2000 W, 60-50 Hz
Recommended Input Voltage 220 VAC
Pawer output  360 VDC
Monitor 15" LCD
Control Panel System Yes
ON-Screen Display Yes
Navigation system Joystick
DVR Yes
System Protection Full system packed in 3 high-performance waterproof cases

  System basic set:

  • GNOM Pro submersible (operating depth up to 300m)
  • 4 magnetically coupled thrusters. 2  horizontal, 2 vertical
  • Tether 10 mm, 200 m (up to 400)
  • Compass with the auto-heading mode (data on screen overlay)
  • Depth sensor (auto-depth mode)
  • 2 color videocameras (front and rear)
  • Camera tilt servo ±50°
  • Lights (front fnd rear) / Lights with tilt servo
  • LCD TV monitor 15"
  • Manipulator 1 or 2 function (option)
  • Sector scan sonar (option)
  • USBL positioning system (option)
  • Hand reel with slip ring conector
  • Surface control/power unit
  • Protective polypropylene frame with  buoyant module
  • 3 cases
  • Joystick
  • Cable connectors set
  • Repair kit
  • User's manual

Standard ROV warranty (except tether and propellers) is 1 year .
Time of manufacturing is 8 – 12 weeks.

Download datasheet *.pdf

Can be used in:

Extra Equipment

Camera tilt servo

Camera tilt servo

tilt up/down ±50°


Sector sonar

Sector sonar

Type Micron Tritech. Operating frequency Chirped 650kHz to 750kHz. Range settings From 2m (6ft) to 75m (250ft). More info...


Lights with tilt servo

Lights with tilt servo

Additional lights with tilt servo ±50° (synchronously with the camera)


Sector scan sonar

Sector scan sonar

Type Micron Tritech. Operating frequency Chirped 650kHz to 750kHz. Range settings From 2m (6ft) to 75m (250ft). More info...


Additional clusters of ultra-bright LEDs

Additional clusters of ultra-bright LEDs


Additional camera with embedded cluster LED lights

Additional camera with embedded cluster LED lights

Rear camera with ambedded cluster LED lights


Laser pointers

Laser pointers

Use for measuring sizes of various underwater objects.


Rear camera with ambedded cluster LED lights

Rear camera with ambedded cluster LED lights

Camera is installed instead rear thrusters or on a frame; extremely useful survey of side walls of underwater facilities, ship hulls, bottom etc.


Grabber 1 or 2 functional

Grabber 1 or 2 functional

1 (grabber) or 2 functional (grabber + rotating) manipulator. It is can be used for sampling or fixing of the vehicle on the underwater object (compression load up to 5 kg; air weight - 0.5 kg; dimensions - 200x30 mm).

Thickness gauge

Thickness gauge

Thickness gauge

CP probe

CP probe

CP probe

Tether counter

Tether counter

Tether counter

To obtain information about prices contact our sales department.
