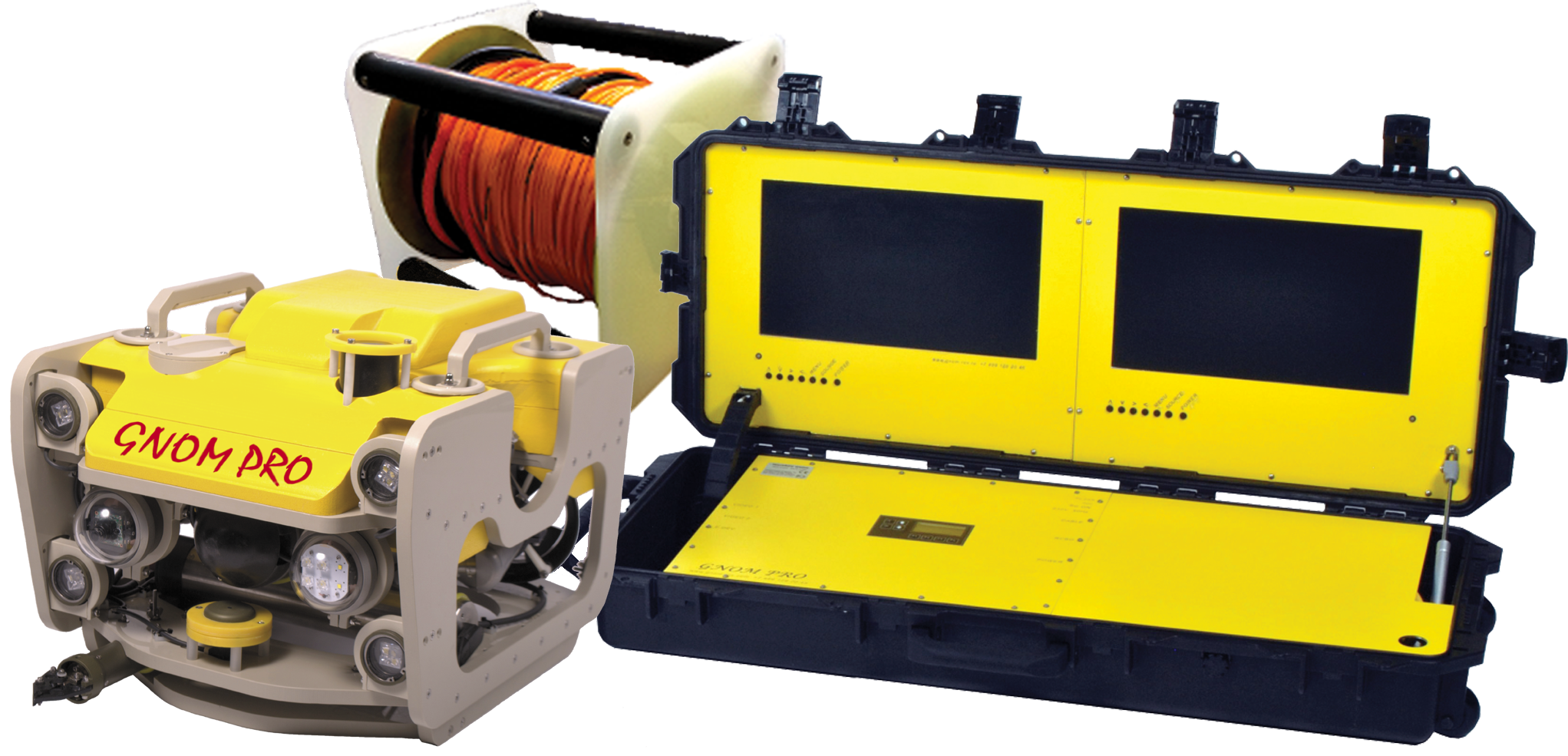

Super GNOM Pro 1
ROV of the professional line of ROVs GNOM family.
Technical specifications
UNDERWATER PART |
|
| Maximum Operating depth | 150 m (optionally up to 300 m) |
| Dimensions (LxWxH) | 520 mm x 440 mm x 347 mm |
| Weight in air / total system weight | 25 kg / 100 kg |
| Thrusters | 4 magnetically coupled brushless DC motors Horizontal: 2x thrusters, 48 VDC 200W Vertical: 2x thruster, 48 VDC 200W |
| Cruising speed (forward) | up to 4 knots |
| Lateral speed (optional) | up to 0.5 knots |
| Thrust Forward | 12 kgf |
| Thrust Vertical | 10 kgf |
| Payload | 5 kg |
| Vehicle Protection | Polypropylene frame |
TETHER |
|
| Max. tether length | 400 m |
| Cable diameter | 10 mm |
| Breaking Strength | 200 kg |
| Weight in Air | 7 kg/100 m |
| Weight in Fresh Water | Neutrally Buoyant |
| Type | Multicore tether with kevlar wires |
| Max. Working Load | 60 kg |
CAMERA SYSTEM |
|
| Camera Model | Sony Super HAD 2 CCD |
| Camera resolution | 700 TV Lines |
| Image Sensor | 1/3" Interline Transfer CCD |
| Mini Illumination | 0.1 lux (0.01 - b/w camera) |
| Lens | 3.6 mm/F2.0 |
| Iris Control | Auto |
| Focus | Auto |
| Field of View (FOV) | 66º |
| Camera Tilt | +/- 50º |
LIGHTING SYSTEM |
|
| Light Source | White ultra-bright LEDs |
| Number of LEDs | 10x |
| Power | 4x8 watts, 6x1 watts |
| Luminous Flux | 6000 lumen |
| Beam Angle | 105º each |
| Colour Temperature | 5600-6000º Kelvin |
| Control | Variable intensity |
TELEMETRY SYSTEM |
|
| Sensors | Compass and Depth sensors |
| Teletext | Yes |
| Auto-guide mode | Yes |
| Auto-depth mode | Yes |
SURFACE CONTROL UNIT |
|
| Power supply | 100-240 VAC @ 2000 W, 60-50 Hz |
| Recommended Input Voltage | 220 VAC |
| Pawer output | 360 VDC |
| Monitor | 15" LCD |
| Control Panel System | Yes |
| ON-Screen Display | Yes |
| Navigation system | Joystick |
| DVR | Yes |
| System Protection | Full system packed in 3 high-performance waterproof cases |
System basic set:
- GNOM Pro submersible (operating depth up to 300m)
- 4 magnetically coupled thrusters. 2 horizontal, 2 vertical
- Tether 10 mm, 200 m (up to 400)
- Compass with the auto-heading mode (data on screen overlay)
- Depth sensor (auto-depth mode)
- 2 color videocameras (front and rear)
- Camera tilt servo ±50°
- Lights (front fnd rear) / Lights with tilt servo
- LCD TV monitor 15"
- Manipulator 1 or 2 function (option)
- Sector scan sonar (option)
- USBL positioning system (option)
- Hand reel with slip ring conector
- Surface control/power unit
- Protective polypropylene frame with buoyant module
- 3 cases
- Joystick
- Cable connectors set
- Repair kit
- User's manual
Standard ROV warranty (except tether and propellers) is 1 year .
Time of manufacturing is 8 – 12 weeks.
